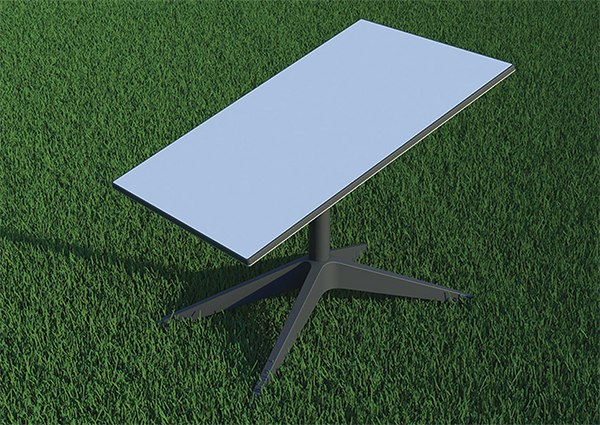

Starlink Standard 4
The Starlink Standard 4 kit is designed to deliver reliable broadband connectivity using the V4 Standard antenna, offering consistent performance for fixed enterprise, fleet, and managed deployments. This kit pairs the antenna with the new Starlink Mini Router, enabling a simplified power and networking architecture that supports a clean Layer‑3 handoff to customer or managed networking equipment. Optimized for operational stability and ease of integration, Standard 4 is well‑suited for permanent installations where streamlined deployment, reduced complexity, and end‑to‑end service assurance are essential.
Product Specifications
STARLINK ANTENNA
- Dimensions: 594 mm (23.4 in) x 383 mm (15.07 in) x 39.7 mm (1.5 in)
- Weight:
- 2.9 kg (6.4 lb)
- 3.2 kg (7 lb) with Kickstand
- Antenna: Electronic Phased Array
- Field of View: 110 °
- Orientation: Software Assisted Manual Orienting
- Environmental Rating: IP67 Type 4
- Operating Temperature: -30°C to 50°C (-22°F to 122°F)
- Wind Speed: Survivable: 96 kph+ (60 mph+)
- Snow Melt Capability: Up to 40 mm / hour (1.5 in / hour)
- Power Consumption Average: 75 – 100W
- Mounting: Kickstand
STARLINK POWER SUPPLY
- Dimensions: 194 mm x 98 mm x 35.75 mm (7.6 in x 3.9 in x 1.4 in)
- Weight: 0.65 kg (1.4 lbs)
- Input: 100 – 240V ~ 2.5A 50 – 60 Hz
- Environmental Rating: IP66 Type 4
** Wi-Fi router optional. For enterprise setups, Speedcast recommends the SIGMA network management solution for enhanced network performance and security.
