Speedcast SmartView™

Request a demo

Network-optimized Livestreaming

Delivers live content over low bandwidth satellite networks point-to-cloud, to enable simultaneous review and decision making for assets worldwide.

Ultra-low bandwidth with transfer rates as low as 32 kpbs.

Connectivity offering uninterrupted 30fps high definition (HD) video and audio.

Reduces bandwidth usage up to 80%.

Features & Benefits

Revolutionize Remote Access and Field Collaboration

For industries with critical operations, Speedcast SmartView helps customers accelerate their digital transformation by revolutionizing remote access and field collaboration while reducing maintenance costs and increasing profits.

Multiple Formats

Speedcast SmartView can be used on remotely operated vehicles (ROVs) for subsea inspections and research, at remote sites for monitoring, and on wearable devices.

Network Agnostic

Delivers video and audio with data synchronization via any VSAT, MSS and terrestrial network.

Plug and Play

Provides plug and play usability, maximum video signal compatibility and complete customization.

Artificial Intelligence

Artificial Intelligence (AI) compression maximizing bandwidth utilization.

Self-healing

Self-healing error correction algorithm stopping data loss and minimizing latency.

Secure

End-to-end encrypted video and data.

Speedcast SmartView Control Panel

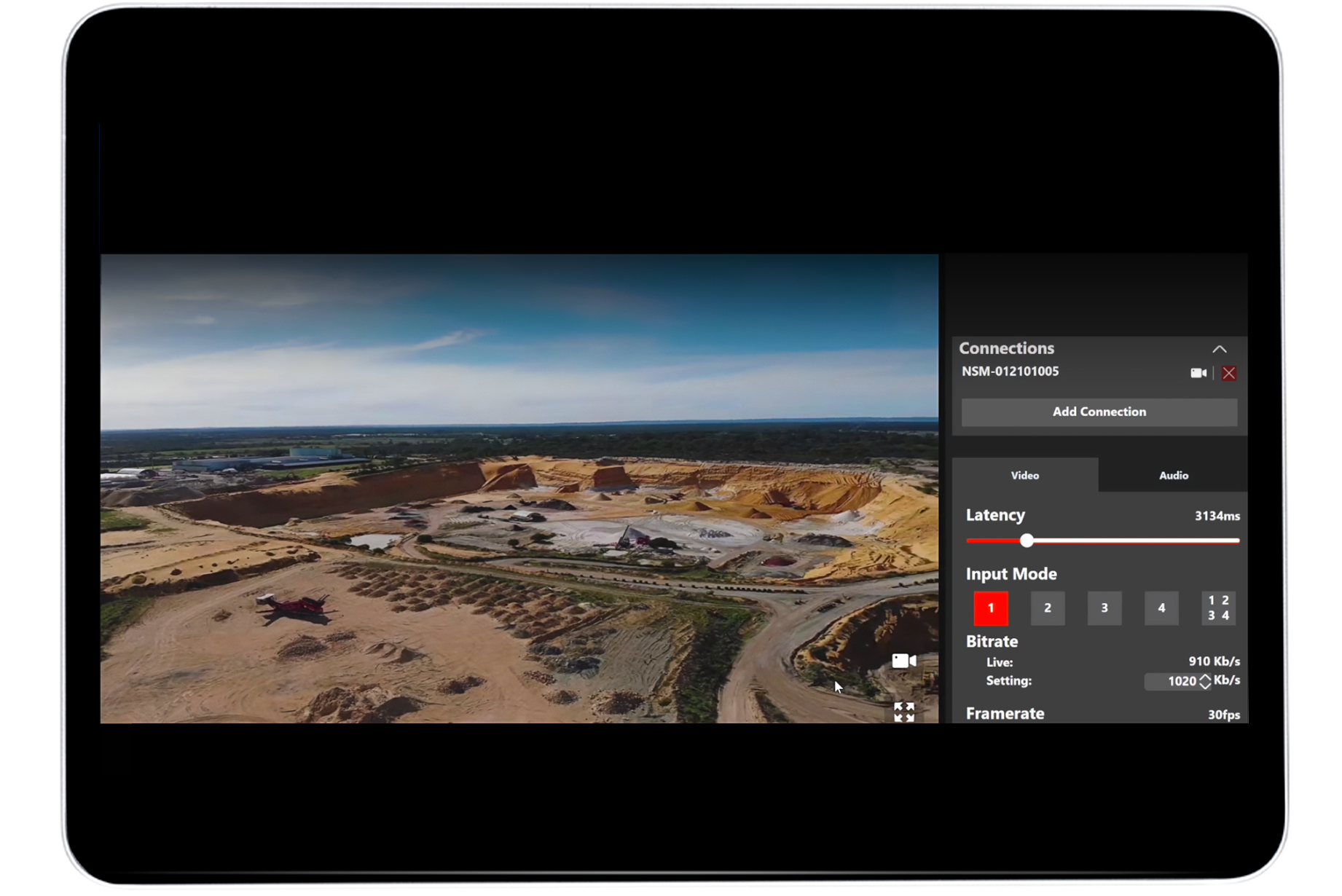

Live video and data streams on virtually any smart device

Portfolio

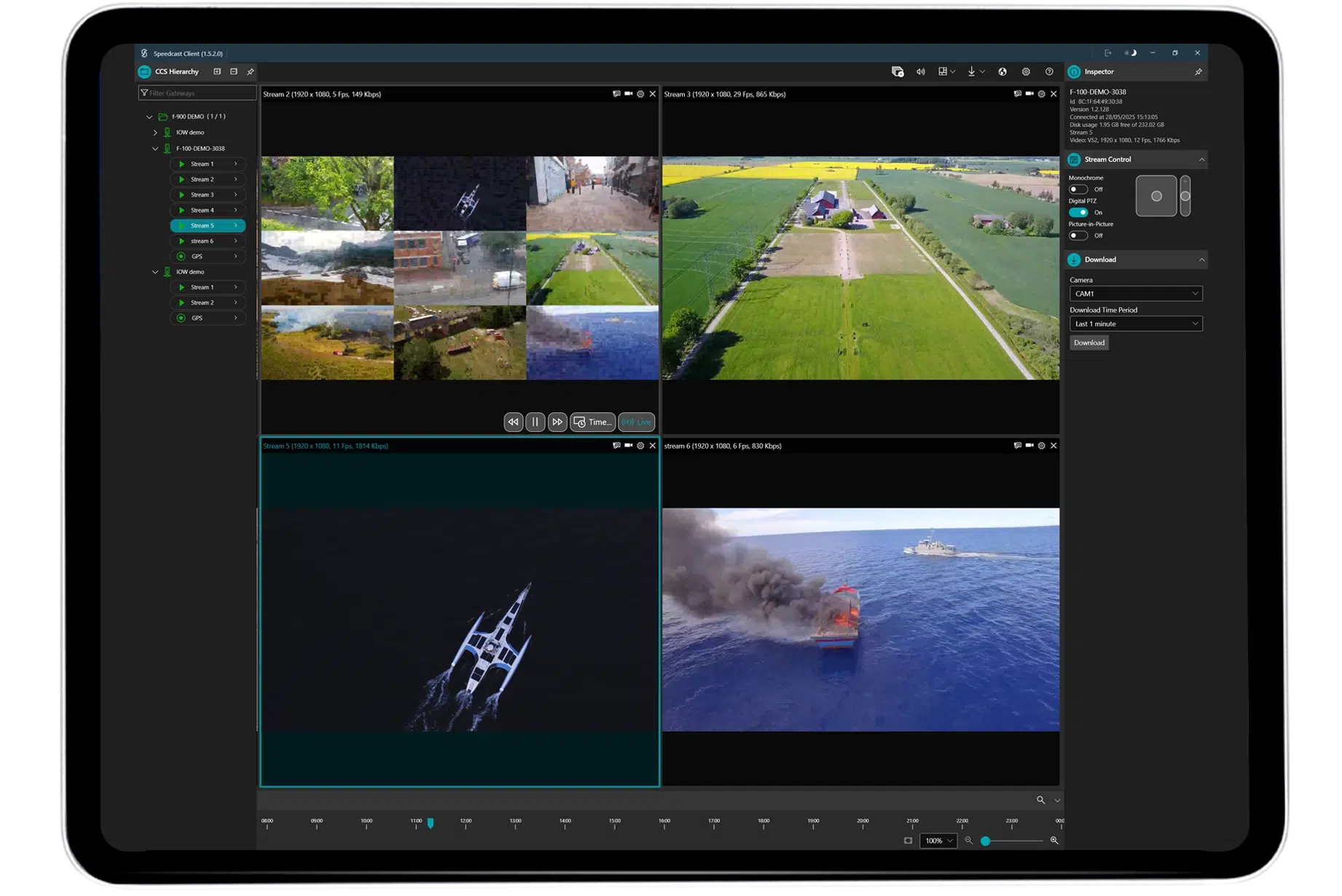

Real-time quad high-definition video, audio and data streaming via any network.

Select an Area

Speedcast SmartView for Wearable

Speedcast SmartView for Wearable

Equip on-site personnel with a rugged head-mounted, hands-free device, to capture the actual remote site condition and receive operation instructions and support.

Remote Feature Set

  • HMT-1 or HMT-1Z1 wearable headset for low bandwidth live streaming
  • 1080p 30fps Camera with option for Atex
  • Zone 2 Intrinsically safe
  • Handsfree Wi-Fi headset
  • Digital microphone with active noise cancelling and multi language voice recognition support
  • Compatible with hearing protection and PPE
  • Full shift compatible battery charge with 9 – 10 hrs operation
  • Lightweight unit (380g)
  • Ruggedized with a IP66 enclosure
  • Rackmount streaming processor for multi-headsets
  • Option for onsite monitor / mic and speaker system (additional hardware and configuration required)

Web Interface Feature Set

  • Fully configurable client visual experience (customizable branding and color schemes to present video / data as required)
  • End to end encrypted video and data
  • On-the-fly bandwidth and quality adjustment
  • Once decoded, streams can be directed to AVR2 system for secure web access to streams
  • Remote stream control

Speedcast SmartView for Remotely Operated Vehicle (ROV)

Speedcast SmartView for Remotely Operated Vehicle (ROV)

Carry out remote visual and Non-Destructive Testing (NDT) inspections leveraging Speedcast SmartView’s continuous video, audio and data stream delivered from remotely operated vehicle to shore.

Remote Feature Set

  • SDI, HDMI and composite video inputs
  • Serial or IP data and audio capture
  • Extremely simple user interface
  • Live input display
  • Silent 3U form factor. Side entry cooling means no space above or below the unit needs to be provided.
  • On-the-fly option to direct all available bandwidth to a single stream or share between the quad video inputs
  • Ultra-low bandwidth H265 stream (64 – 2048k)
  • Error corrected video 30% packet loss tolerance



Primary Feature Set

  • On-the-fly bandwidth, SD / HD options and latency adjustment
  • Real-time monitoring of bandwidth utilization and latency
  • System capable of 60fps at 1080p
  • Web control enables instant redirection of encoded video streams to any decoder on the network
  • Quad view – removing the need for downstream multi-viewer equipment
  • Extremely robust error correction
  • Decoder stream forwarding
  • Proprietary protocols
  • Serial input with frame synchronization; Flexible system with easy to add and remove equipment; Upgradeable hardware and software

Additional Technical Specifications (Encoder)

  • Linux operating system
  • Standard 3U rackmount
  • Overall dimensions (mm) – W 483 H 132 D380
  • Maximum weight (kg) – 9.7 / 8.6
  • Ports [Encoder] – 4 x HDMI in/Ethernet/USB/DB9 RS232 Serial/IEC C13 AC
  • Ports [Decoder] – 4 x Display port out/ Ethernet/USB/DB9 RS232 Serial/IEC C13 AC
  • Power requirements – 100-240VAC, 50-60Hz
  • Typical power usage (W) 45 /30 idle / 85 / 70 operational / 350 / 195 max

Speedcast SmartView for Remote Site Monitoring

Speedcast SmartView for Remote Site Monitoring

View and monitor remote sites 24×7 to manage physical security and prevent damage and loss.

Remote Feature Set

  • SDI, HDMI and analogue video inputs
  • Serial data capture
  • Optional audio capture
  • Extremely simple user interface
  • Live input display
  • 2U form factor. Side entry cooling means no space above or below the unit needs to be provided.
  • Ultra-low bandwidth video stream (64 – 2048k )
  • SD / HD Options , configurable on-the-fly
  • Error corrected video stream 30% Packet loss tolerance



Web Interface Feature Set

  • Fully configurable client visual experience (customizable branding and color schemes to present video / data as required)
  • Self-managed access by email invite
  • 256bit encrypted video / data streams
  • Multi browser compatible (inc. mobile devices)
  • On the fly bandwidth and quality adjustment
  • Share a single stream across multiple presentations to different audiences worldwide
  • Visualize data with multiple trend options
  • Remote stream control

Additional Technical Specifications

  • Standard 2U rackmount
  • Overall dimensions (mm) – W 483 H 88 D 365
  • Maximum weight – 5.4kg
  • Dedicated keys – Reset, Start Stream, Stop Stream, View
  • Ports – HDMI, HD-SDI, Analog, 3.5mm Audio, DB9 Serial, Ethernet, IEC 13 AC
  • Power requirements – 100-240VAC, 50-60Hz Typical power usage – 50W
  • Included peripherals – IEC power cable, serial gender changer, serial null modem, manual

Downloads & Resources

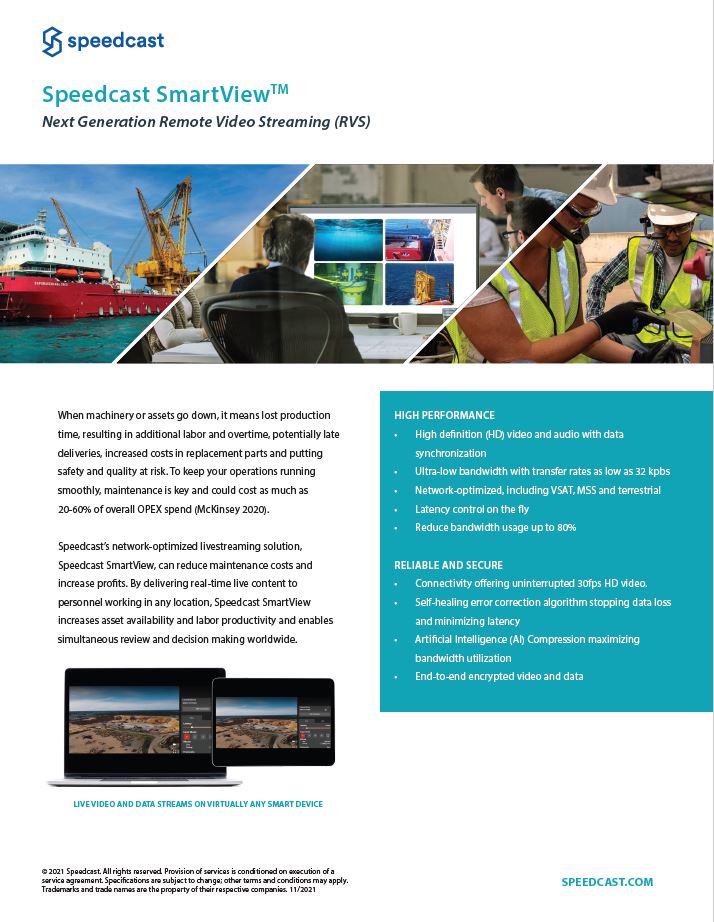

Speedcast SmartView Brochure

Read about the features and functionality of Speedcast SmartView

Download

Comprehensive Connectivity and Innovation Solutions

Our solution expertise spans more industries and locations than any other provider. Learn more about how Speedcast delivers fully-connected systems and future-ready solutions designed to accelerate your mission and amplify your operations, anywhere in the world.

Ready to Take the Next Step?
