Eutelsat OneWeb is a leading provider of high-speed, low-latency satellite connectivity in low Earth orbit (LEO). As a primary Global Distributor of OneWeb, Speedcast has been actively testing and deploying OneWeb services for our customers on land and at sea. Our implementations range from maritime terminals on research vessels operating in polar regions, research facilities in Antarctica , to luxury yachts throughout Europe.
What differentiates OneWeb from other LEO satellite operators is its flexibility in offering enterprise-grade antennas from various manufacturers, including Intellian and Kymeta, with plans to expand options in the near future. Here’s a guide to some popular antennas and their optimal applications.

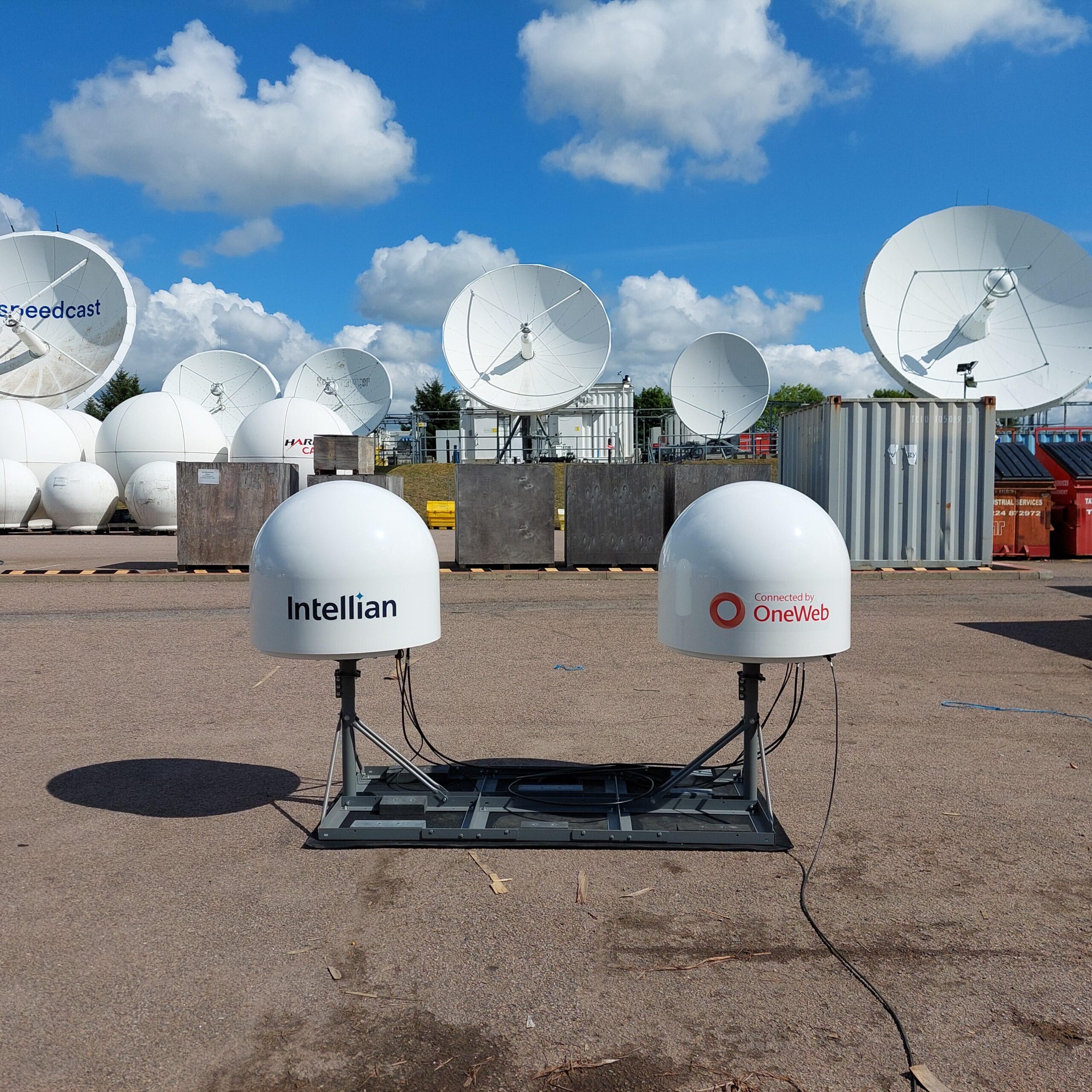

Intellian Dual Parabolic OW 50/70
The Intellian dual parabolic antenna is one of the earliest models available for the OneWeb network. It features a stabilized dual parabolic antenna system, ensuring seamless satellite tracking and uninterrupted data transfer, even in challenging conditions. With a download throughput of up to 195 Mbps—the highest among its peers—and an uplink speed of 15 Mbps, it delivers impressive performance. Note that professional installation is required.

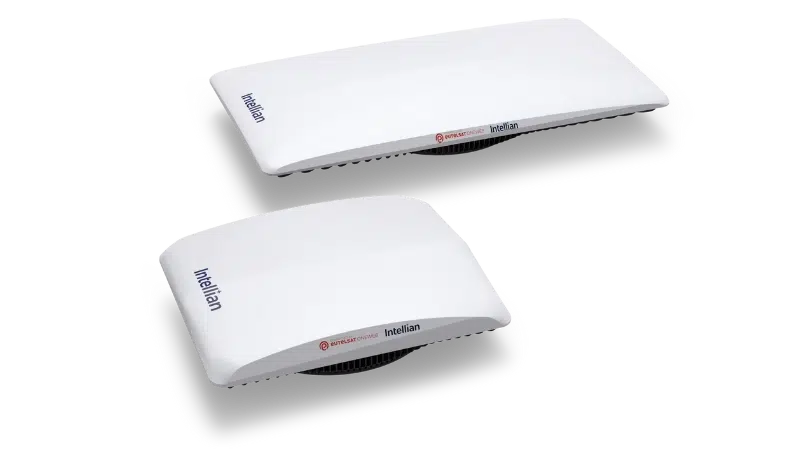

Intellian Compact OW10/11
The Intellian OW 10 (half duplex) and OW 11 (full duplex) antennas strike a balance between high throughput and lightweight design. They offer unprecedented speeds in a compact form factor, optimized for size, weight, and power. Their low-profile, weatherized design ensures dependable performance in demanding environments, including extreme low temperatures and high-interference scenarios. The primary difference between the two models is that the full duplex version provides upload speeds of up to 150 Mbps and download speeds of 30 Mbps, while the half duplex offers upload speeds of up to 75 Mbps and download speeds of 14 Mbps.

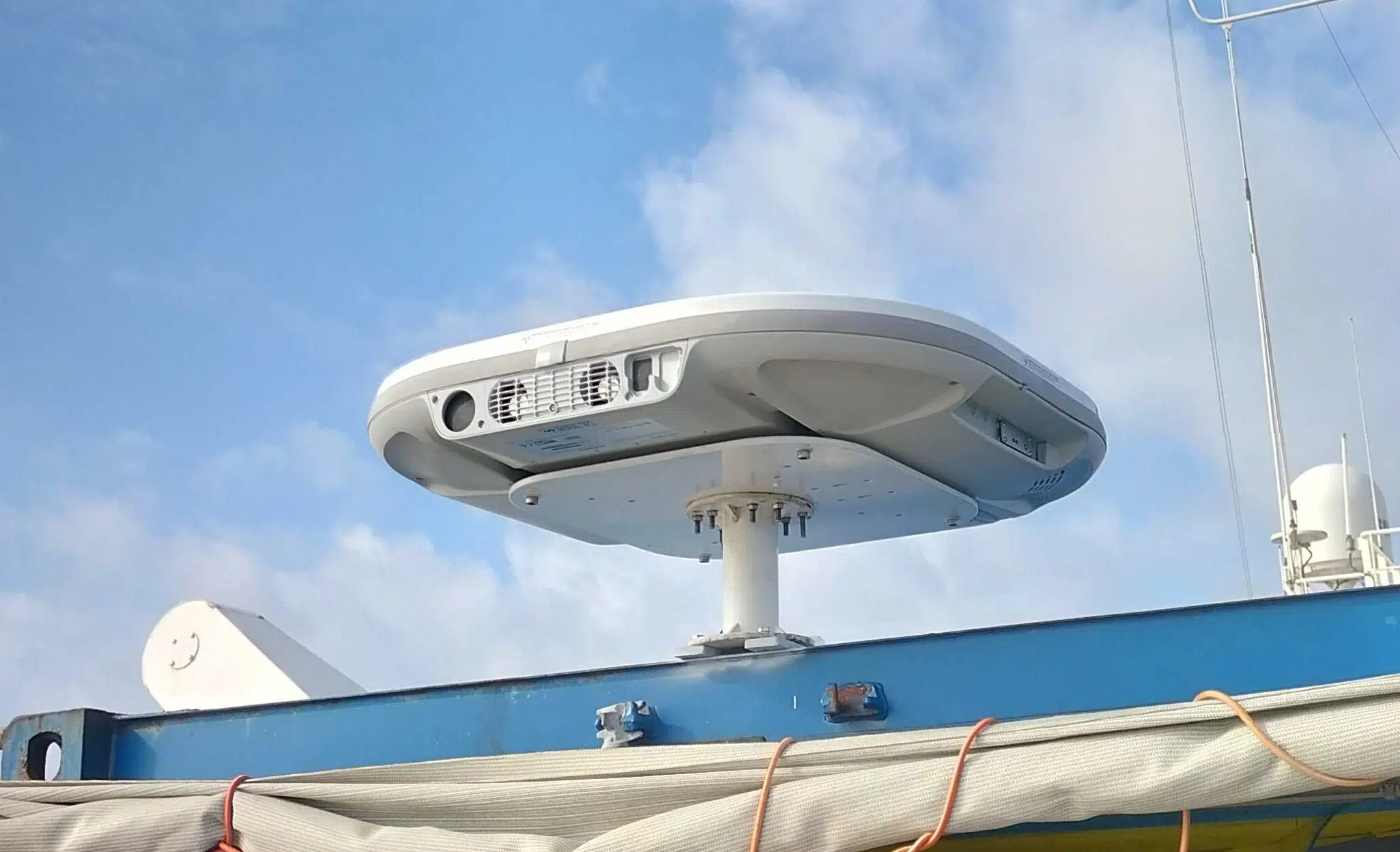

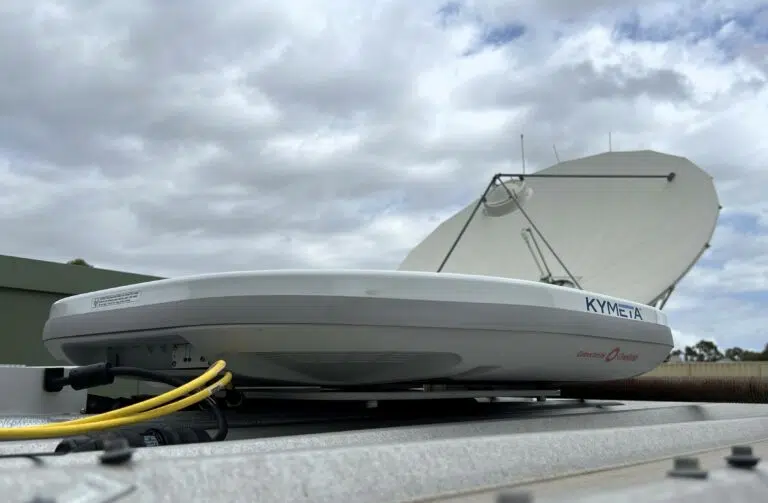

Kymeta Flat-panel Peregrine u8
The Kymeta Peregrine U8 is an electronically scanning terminal designed for flexibility. It supports easily configurable dual or multi-terminal systems suitable for maritime and offshore environments. With its low-profile, aerodynamic design and IP66 marine-grade rating, it includes an embedded OneWeb modem for optimal performance. Kymeta offers high performance, with download speeds reaching 195 Mbps and upload speeds of 32 Mbps.
‘Gold’ Service Grade for Speedcast Customers
Speedcast’s OneWeb customers enjoy a ‘Gold’ service grade, ensuring higher priority on the OneWeb network and enhancing their connectivity experience. Speedcast also offers exclusive OneWeb plans with competitive pricing, which include unlimited data usage or data allowance packages, along with high levels of MIR and CIR, allowing customers to choose from various tailored options. Additionally, OneWeb features unique data allowances and pooling options, providing further flexibility. The service plans are designed for adaptability, making it easy for customers to upgrade or suspend their plans according to seasonal demands, ensuring they only pay for what they need when they need it.
OneWeb Antenna Comparison Table
| Intellian Dual Parabolic OW 50/70 | Kymeta Flat-panel Peregrine u8 | Intellian Compact OW10H | Intellian Compact OW11F | |
| Also known as | Dual Parabolic Antenna System | N/A | Half Duplex | Full Duplex |
| Applications | Fixed and mobility enterprise applications | Fixed and mobility enterprise applications | Fixed and mobility enterprise applications | Fixed and mobility enterprise applications |
| Downlink Throughput* | 195 Mbps | 195 Mbps | 75 Mbps | 150 Mbps |
| Uplink Throughput* | 16 Mbps | 32 Mbps | 14 Mbps | 30 Mbps |
| Download Speeds | 25 to 150 Mbps | 25 to 150 Mbps | 25 to 150 Mbps | 25 to 220 Mbps |
| Dimensions | 85.6d x 85.0h cm
(33.7d x 33.6h inch) |
89.5w x 89.5d x 14h cm
(35w x 35d x 5.5h inch) |
56 x 45 x 12 cm
(22 x 17.7 x 4.7 inch) |
97 x 50 x 13 cm
(38.2 x 19.7 x 5.1 inch) |
| Reflector size | 53 cm (20.9 inch) | N/A | 73 cm (28.7 inch) | N/A |
| Weight | 104kg (52kg x dome)
108kg (54kg x dome) |
31 kg (68.3 lb) | 12.2kg (26.9 lb) | 20.5 kg (45.1 lb) |
| Operational temperature | -25°C to +55°C, -30°C to +55°C (with Heater) | -40°C to +55°C
(-40 °F to +131 °F) |
-40 °C to +55 °C
(-40 °F to +131 °F) |
-40 °C to +55 °C
(-40 °F to +131 °F) |
| Power supply /consumption | Max~90W (antenna), Max~200W (heater) | Separate AC to DC power supply
100 W (avg) |
56VDC supplied via CNX over Coax Cable
180 W. (max) 165 W. (avg) |
56VDC supplied via CNX over Coax Cable
380 W. (max) 300 W. (avg) |
| Ship motion | Roll ±25º, Pitch ±15º, Yaw ±,
Yaw ±10º over 6 seconds, Turning rate up to 13º/sec |
N/A | N/A | N/A |
| Data User Interface | 2x RG6/RG11 MoCA Port (F-type)
8x Ethernet Port (RJ45) 1x USB (Type-A) 1x NMEA-0183 Port (2-pin terminal) |
Ethernet output from outdoor terminal. | Single coaxial cable for power and data between indoor and outdoor unit.
Cable type depends on distance. Possibly existing VSAT RF cable can be used. |
Single coaxial cable for power and data between indoor and outdoor unit.
Cable type depends on distance. Possibly existing VSAT RF cable can be used. |
| Ingress protection | IP56 | IP66 | IP66 | IP66 |
| Field of View | N/A | 106° | +/-55° | +/-70° |
| Versions | Maritime and land versions available. | Maritime and land versions available. | Maritime and land versions available. | Maritime and land versions available. |
*Consult Speedcast for available OneWeb Exclusive and Public Service Plans
Speedcast’s OneWeb Points of Presence (PoPs) provide carrier-grade local Internet access, enhancing performance and reducing latency. These facilities house routers, switches, and servers, ensuring efficient traffic movement across networks. Their strategic locations minimize data travel distance, avoiding intermediate networks that can cause delays. Speedcast’s global infrastructure features multiple PoPs and peering agreements to meet customer needs and improve reliability. Additionally, these PoP locations connect to the Speedcast MPLS network, offering customers comprehensive network benefits.
Coverage and Country Licenses
OneWeb has deployed over 650 satellites, providing extensive global coverage. They are strategically building ground gateways worldwide to connect these satellites to terrestrial internet networks and actively securing country licenses to officially offer their services.

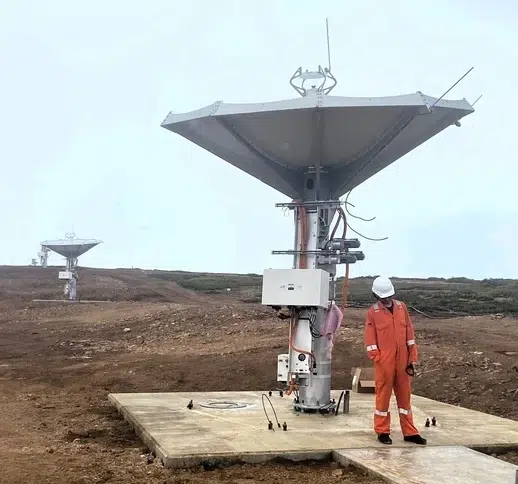

Speedcast collaborates closely with OneWeb, having successfully deployed their services globally and constructed teleports for them. We have also obtained Internet Service Provider licenses in key regions such as Saudi Arabia, Guyana, and Algeria, enhancing our capabilities and flexibility to serve our customers effectively. Whatever your operational needs may be, our team is dedicated to working closely with you to tailor a solution that meets your requirements.
Optimizing OneWeb Integration for Smart Edge Solutions
For Speedcast customers, our SIGMA edge networking platform seamlessly integrates OneWeb with various connectivity options—LEO, GEO, MEO, L-band, cellular, and microwave— creating a unified virtual wide-area network. Users enjoy the flexibility to visualize and customize their services, enhanced by features such as cybersecurity and edge applications. The SIGMA platform operates with a cloud-native orchestration system and supports virtualized deployments and policy-driven configurations throughout its entire lifecycle. This design addresses the critical need for large-scale automation, enabling streamlined rollouts to tens of thousands of edge devices.
As OneWeb continues to expand its service offerings, customers can rely on Speedcast to navigate these options and leverage the latest technologies without compromising on reliability and performance.
Want to know what’s right for your remote operations?
Speak with our experts.
